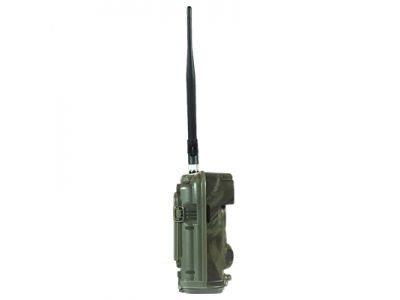

The 6310WMG is the wide-angle lens version of the Ltl Acorn 6310MG /6210MM offers 1080p HD video and an increased memory card capacity accepting up to 32GB in size.
Wide-angle versions offer a 100-degree field of view instead of the standard 55 degrees.
The 6000 Acorns series combines the enhanced night vision range from the 5310A but additionally offers 1080p HD video capabilities, Audio, and SMS remote control.
This is a cellular model which means this unit can be set to send images and/or notifications directly to your mobile phone via MMS or via email.
Trail cameras are motion activated and enable you to capture video footage or images wirelessly. The images/videos are recorded on to an SD card (not included) and can be viewed on the camera, on a computer via the provided USB cable or via a memory card reader.
This camera is packed with a variety of easy to use features. The number of images of the video lengths can be altered through the control menu on the camera via a colour display. Other settings include an option for a timestamp, interval settings, time of operation, motion sensitivity, and more.
A quick summary of this model:
Wide Angle Lens - 100 Degrees. Can record Audio.
|
Image Resolution
|
12MP
|
|
Video Resolution
|
1440 x 1080
|
|
Video Frame Rate
|
20FPS
|
|
Sound
|
No
|
|
Trigger Speed
|
0.8s
|
|
Max SD Card
|
32GB
|
|
Batteries
|
8-12 AA
|
|
Time Lapse
|
Yes
|
|
IR/Flash/Range
|
44 LEDs - 18m/59ft
|
|
Display
|
2" Colour
|
|
Cellular Notifications
|
Yes
|
All of our Ltl Acorn Cameras have 940nm non-glow night vision, meaning the LEDs will not illuminate when the trail cam is triggered making them ideal for all kinds of surveillance purposes. This makes them discrete which is ideal for reducing the likely hood of theft and not spoofing wildlife animals when recording.
We offer a wide range of security accessories for our trail cameras from security boxes, padlocks, solar panels to memory cards. These can be found on our Accessories page under Trail Cameras.
If you are unsure on which camera to purchase or have any enquiries whatsoever, don't hesitate to get in touch and we are more than happy to assist you.
Our camera traps do come with a 1 year manufacturer warranty, on top of our 1 year warranty, and anytime free email support from one of our experts. Click here to contact us.
Product Contents:
- 1 x 5310MG
- 1 x Rear Battery Pack Module (Prefitted)
- 1 x Mount Strap
- 1 x USB Cable
- 1 x AV Cable
- 1 x Instruction Booklet
|
Parameters
|
Specifications
|
Ltl-6310MC
|
Ltl-6310MG
|
Ltl-6310WMC
Ltl-6310WMG
(Wide Lens Series)
|
|
Image Sensor
|
5 Mega Pixels Color CMOS
|
Yes
|
Yes
|
Yes
|
|
Max Pixel Size
|
2560x1920
|
Yes
|
Yes
|
Yes
|
|
Lens
|
F=3.1; FOV=52°; Auto IR-Cut
|
Yes
|
Yes
|
N/A
|
|
Lens
|
FOV=100°; Auto IR-Cut
|
N/A
|
N/A
|
Yes
|
|
IR Flash
|
850nm
940nm (Black Flash)
|
23m/75ft
18m/59ft
|
23m/75ft
18m/59ft
|
23m/75ft
18m/59ft
|
|
LCD Screen
|
40.8x30.6mm(2.0"); 960(RGB)*240DOT;
16.7M Color
|
Yes
|
Yes
|
Yes
|
|
Operation Keypad
|
6 Keys
|
Yes
|
Yes
|
Yes
|
|
Memory
|
SD Card (8MB ~ 32GB)
|
Yes
|
Yes
|
Yes
|
|
Picture Size
|
5MP/12MP/2MP =
2560X1920/4000X3000/1600X1200;
|
Yes
|
Yes
|
Yes
|
|
Video Size
|
1440x1080: 15 fps; 1280x720: 30fps;
640x480: 30fps;
|
Yes
|
Yes
|
Yes
|
|
PIR Sensitivity
|
High/Normal/Low/Off
|
Yes
|
Yes
|
Yes
|
|
PIR Sensing Distance
|
65ft/20m（Below 77°F/25°C at the Normal
Level）
|
Yes
|
Yes
|
Yes
|
|
Prep PIR Sensing Distance
|
Left and right light beams form an angle
of 100°; Each lens covers 10°
|
Yes
|
Yes
|
Yes
|
|
Main PIR Sensing Angle
|
35°
|
Yes
|
Yes
|
Yes
|
|
Operation Mode
|
Day/Night
|
Yes
|
Yes
|
Yes
|
|
Trigger Time
|
0.8 Seconds
|
Yes
|
Yes
|
Yes
|
|
Trigger Interval
|
0sec. - 60min; Programmable
|
Yes
|
Yes
|
Yes
|
|
Shooting Numbers
|
1~3
|
Yes
|
Yes
|
Yes
|
|
Video Length
|
1-60sec.; Programmable
|
Yes
|
Yes
|
Yes
|
|
Camera + Video
|
First take Picture then Video
|
Yes
|
Yes
|
Yes
|
|
Playbook Zoom In
|
1~16 Times
|
Yes
|
Yes
|
Yes
|
|
Time Stamp
|
On/Off; Include serial No., temperature
and moon phase
|
Yes
|
Yes
|
Yes
|
|
Timer
|
On/Off; Programmable
|
Yes
|
Yes
|
Yes
|
|
Timer 2
|
On/Off; Programmable
|
Yes
|
Yes
|
Yes
|
|
Password
|
4-Digit Numbers
|
Yes
|
Yes
|
Yes
|
|
Device Serial No.
|
4 digits and 26 alphabets set by yourself
|
Yes
|
Yes
|
Yes
|
|
Time Lapse
|
On/Off; 1 Second ~ 24 Hours
Programmable
|
Yes
|
Yes
|
Yes
|
|
Beep Sound
|
On/Off;
|
Yes
|
Yes
|
Yes
|
|
SD Cycle
|
On/Off;
|
Yes
|
Yes
|
Yes
|
|
MMS Options
|
VGA = 640x480; SMS = Text Msg.; OFF
Programmable
|
Upgradeable
|
Yes
|
Model
selectable
|
|
MMS Numbers
|
“0” = Unlimited; 1 ~ 99/Day
|
Upgradeable
|
Yes
|
Model
selectable
|
|
MMS Phone No.
|
1 ~ 3 Phone Numbers
|
Upgradeable
|
Yes
|
Model
selectable
|
|
MMS Email
|
1 ~ 3 E-mail addresses
|
Upgradeable
|
Yes
|
Model
selectable
|
|
GPRS Email
|
1 ~ 3 E-mail addresses
|
Upgradeable
|
Yes
|
Model
selectable
|
|
Low Battery SMS Alert
|
“Low battery ” text alert sent
|
Upgradeable
|
Yes
|
Model
selectable
|
|
Language setting
|
Change Country Can Setting
Language
|
Yes
|
Yes
|
Yes
|
|
Power Supply
|
12xAA;
|
Yes
|
Yes
|
Yes
|
|
External DC Power Supply
|
Plug Size: 4.0mmx1.7mm
6 ~ 12V (2 ~ 1A)
|
Yes
|
Yes
|
Yes
|
|
Stand by Current
|
0.4mA
|
Yes
|
Yes
|
Yes
|
|
Stand by Time
|
4～6 Months（4xAA～12xAA）
|
Yes
|
Yes
|
Yes
|
|
Auto Power off
|
Auto power off in 3 minutes if no keypad
input
|
Yes
|
Yes
|
Yes
|
|
Power Consumption
|
150mA (+350mA when IR LED lights up)
|
Yes
|
Yes
|
Yes
|
|
Low Battery Alert
|
4.2~4.3V
|
Yes
|
Yes
|
Yes
|
|
Interface
|
TV out (NTSC); USB; SD Card Slot; 6V
DC External
|
Yes
|
Yes
|
Yes
|
|
Mounting
|
Strap; Tripod
|
Yes
|
Yes
|
Yes
|
|
Waterproof
|
IP54
|
Yes
|
Yes
|
Yes
|
|
Operation Temperature
|
-22~+158°F/-30 ~+70°C
|
Yes
|
Yes
|
Yes
|
|
Operation Humidity
|
5% ~ 95%
|
Yes
|
Yes
|
Yes
|
|
Certification
|
FCC & CE & ROHS
|
Yes
|
Yes
|
Yes
|
